Center Air Intake Grille, Removing And Installing, A5 Basic/Lines From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

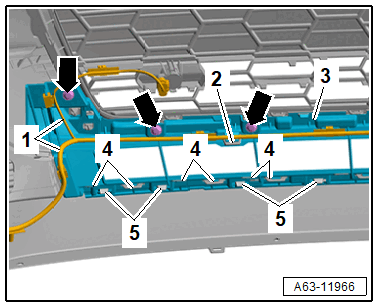

-- Free up the wiring harness -1-.
-- Remove the screws -arrows-.
-- Release the retainers -2, 4 and 5- and remove the air intake grille -3- from the bumper cover.
