Bumper Cover, Removing And Installing: Removing

-- Push in the front wheels and loosen the wheel housing liner near the front bumper cover. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

A4 Before the Product Improvement

Courtesy of AUDI OF AMERICA, LLC

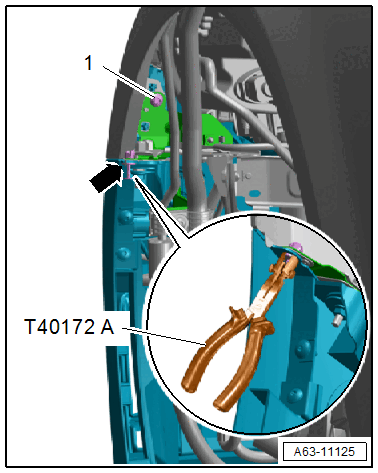

-- Use the : T40172C  with the : T40172/1  to remove the expanding rivet -arrow-.

-- Remove the bolt -1-.

A4 before Product Improvement, A5:

Courtesy of AUDI OF AMERICA, LLC

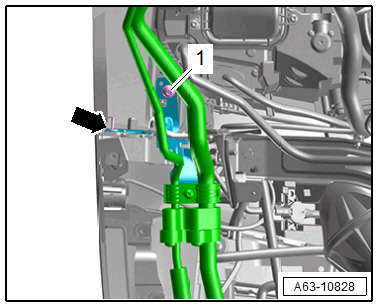

-- Remove the expanding rivet -arrow-.

-- Remove the bolt -1-.

Continuation:

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

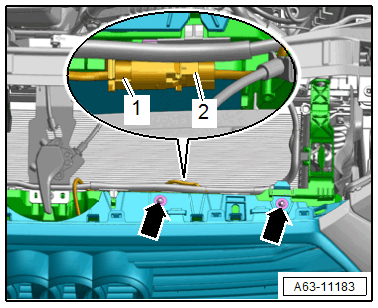

-- If equipped, free up the antenna wires -1- and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows-.

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

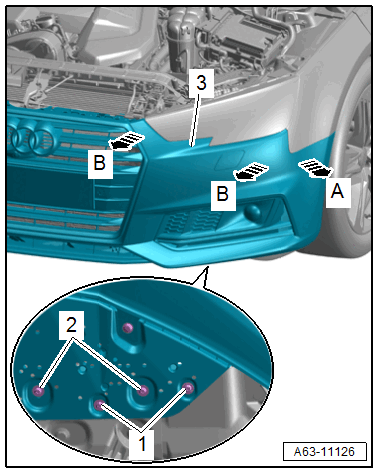

-- Disengage the side piece from the front side panel in direction of -arrow A- and remove the bumper cover -3- slightly with the help of a second technician in direction of -B arrows-.

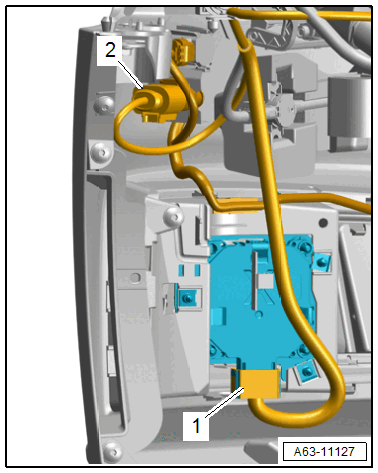

-- If equipped, disconnect the central connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-, if equipped.

-- Remove the bumper cover.
