Bumper Cover, Adjusting: Notes
WARNING: This page is about a different variant/trim than selected.
- Depending on the equipment version, the following additional work must be performed. Refer to Depending on the version, the following additional work is required: .
Procedure

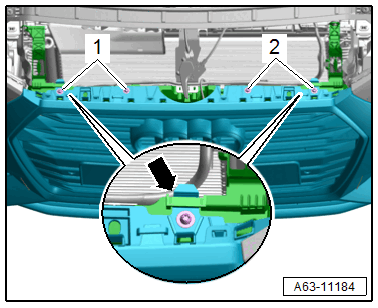

-- Loosen bolts -1 and 2-.
-- Adjust the front bumper cover lengthwise according to the markings -arrow-.
-- Tighten the bolts.
-- Check the gap dimension for evenness, and repeat the adjustment if necessary.
