Bumper Cover Side Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the air duct. Refer to AIR ROUTING, REMOVING AND INSTALLING .

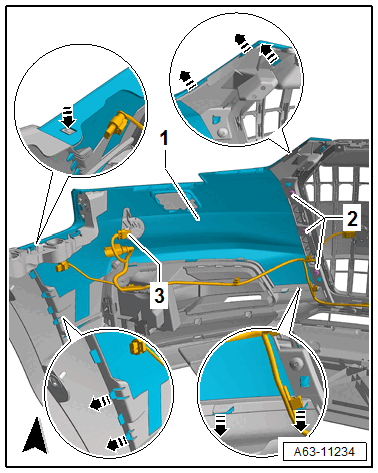

-- Disconnect the connector -3-.
-- Remove the bolts -2-.
-- Release the retainers in direction of -arrows- and remove the bumper cover side panel -1-.
