Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

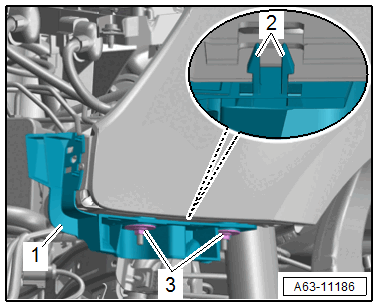

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Free up the connector if equipped.
-- Remove the nuts -3-.
-- Remove the bumper cover mount -1- downward. This will release the retainers -2-.
