Bumper Cover End Plate, Removing And Installing, A5: Removing
WARNING: This page is about a different variant/trim than selected.

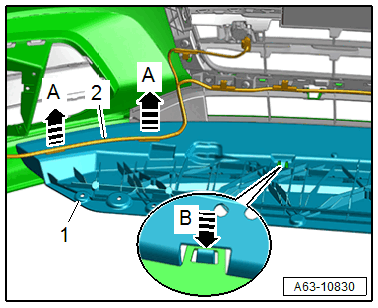

-- Remove the bolts -arrows- from the front bumper cover end plate -1-.
-- Push the front bumper cover end plate -1- downward as far as possible and free up the wiring harness -2- in direction of -A arrows-.
-- Release the catch in direction of -arrow B- and remove the front bumper cover end plate toward the rear.
