Air Routing, Removing And Installing, A4: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .
-- Loosen the front wheel housing liner in the front and push it to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

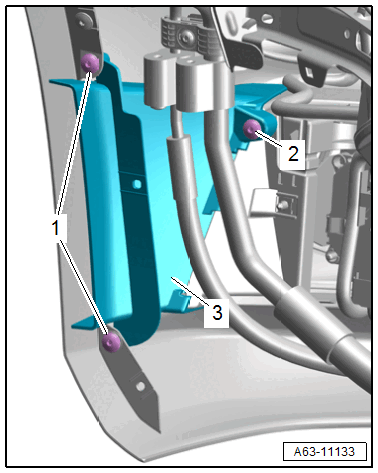

-- Before product improvement: remove the bolts -1 and 2-.
-- Remove the air duct -3- to the rear.

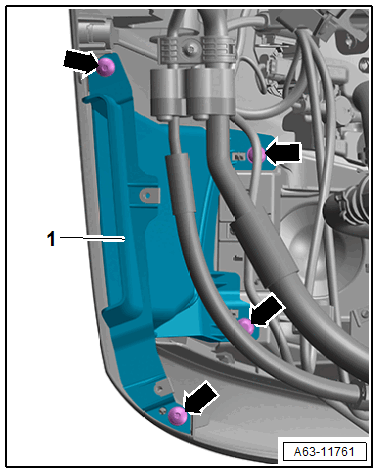

-- From product improvement: remove the bolts -arrows-.
-- Remove the air duct -1- towards the rear.
