Air Duct, Removing And Installing, A4 ALLROAD From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .
-- Loosen the front wheel housing liner in the front and push it to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

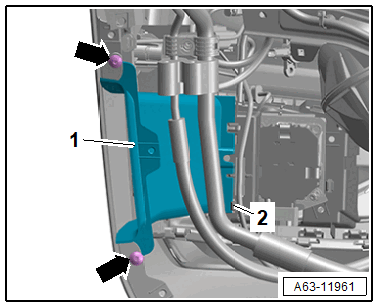

-- Remove the screws -arrows-.
-- Release the catch -2- and remove the air duct -1- to the rear.
