Overview - Wheel Bearing, AWD

WARNING: This page is about a different variant/trim than selected.

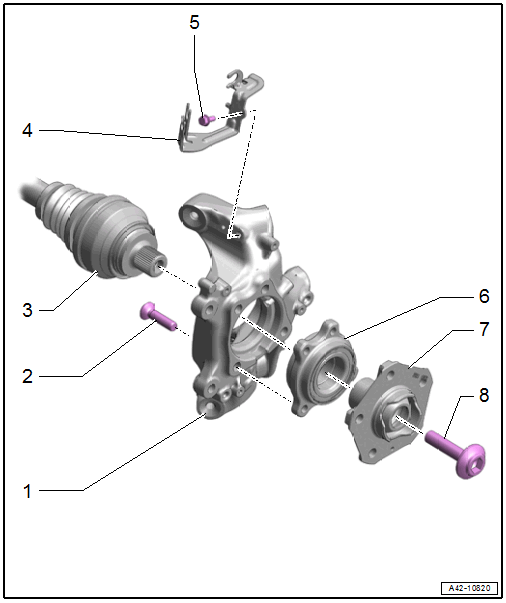

Fig 1: Exploded View Of Wheel Bearing, AWD

Courtesy of AUDI OF AMERICA, LLC

Wheel Bearing Housing
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
Bolt
- 80 Nm + 90°
- Always replace after removing
Drive Axle
Bracket
- For wires
Bolt
- 13 Nm
- Thread forming
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
Wheel Bearing
- Wheel bearing unit, removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- Currently only delivered with -7-
- Wheel bearing unit, servicing. Refer to WHEEL BEARING UNIT, SERVICING .
- Handling the wheel bearing. Refer to Figure.
Wheel Hub
- Currently only delivered with -6-
Bolt
- Drive axle threaded connection, loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
