Stabilizer Bar, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Before starting the procedure, determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
-- Equipped on some models: remove the right diagonal brace. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .

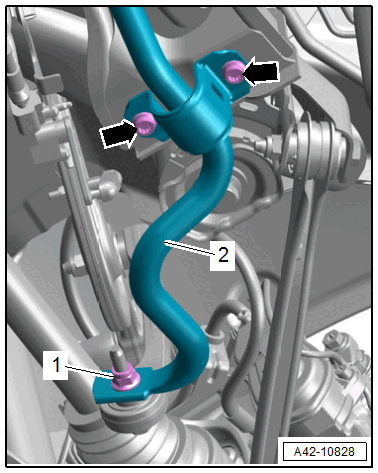

-- Remove the left and right bolts -arrows-.
-- Disconnect the left and right threaded connection -1- and remove the stabilizer bar -2-.
NOTE:
The installation position is shown for the AWD equipment version.
