Rear Bonded Rubber Bushing For Rear Final Drive, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
 Courtesy of AUDI OF AMERICA, LLC
|

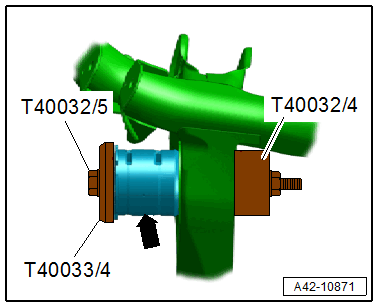

-- Install the :T40032
and :T40033
on the bonded rubber bushing and on the subframe, as shown.
-- Install the bonded rubber bushing all the way in the subframe.
Further installation is the reverse order of removal.
