Overview - SUBFRAME, Fwd

WARNING: This page is about a different variant/trim than selected.

CAUTION:

There is a risk of damaging the threads on the subframe threaded connection to the body.

The subframe bolts on the body must not be loosened or tightened with an impact wrench.
Always install all bolts by hand for the first few turns.

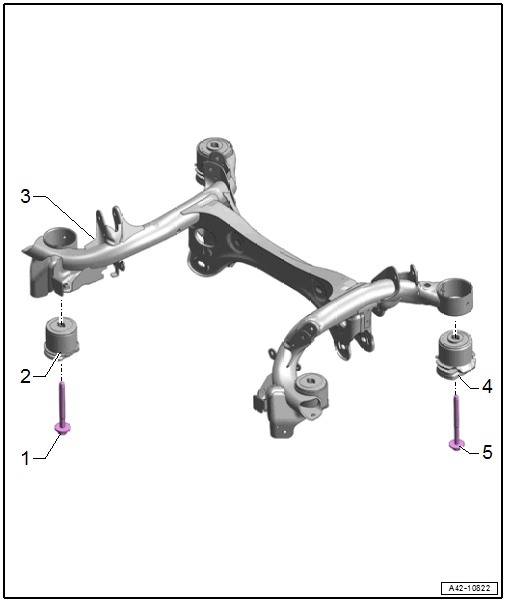

Fig 1: Exploded View Of Subframe, FWD

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 130 Nm + 180°
- Always replace after removing
Front Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME, SERVICING .
Subframe
- Equipment versions with vibration damper. Refer to Fig 2.
- Removing and Installing. Refer to SUBFRAME, REMOVING AND INSTALLING .
Rear Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME, SERVICING .
Bolt
- 90 Nm + 180°
- Always replace after removing

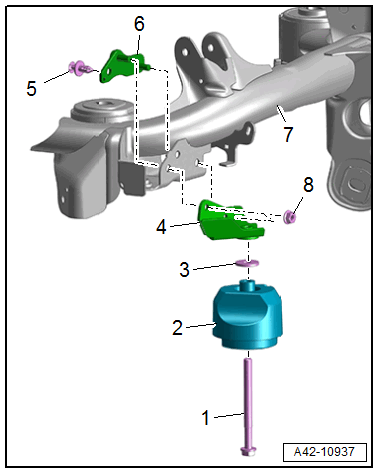

Equipment Versions with Vibration Damper

Fig 2: Equipment Versions with Vibration Damper

Courtesy of AUDI OF AMERICA, LLC

2 - Vibration Damper

3 - Washer

4 - Bracket

5 - Expanding Rivet

6 - Bracket

7 - Subframe

8 - Nut

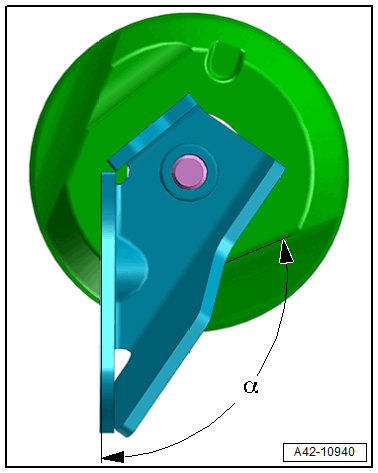

Vibration Damper - Installation Position

Fig 3: Vibration Damper - Installation Position

Courtesy of AUDI OF AMERICA, LLC

-- Align the bracket to the vibration damper.
