Tie Rod, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Before starting the procedure, determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
-- Remove the rear wheel. Refer to WHEELS AND TIRES .
-- Turn the wheel hub, until a wheel bolt hole is at the top.
-- Install the :T10149 with a wheel bolt -2- on the wheel hub.
NOTE:
Ignore item -1-.
-- Slightly lift the wheel bearing housing using the :T10149 with the :VAS6931 this allows the threaded connections to easily separate.
WARNING:
Risk of accident!
- Do not lift or lower the vehicle when the :VAS6931 is under the vehicle.
- Do not leave the :VAS6931 under the vehicle any longer than necessary.

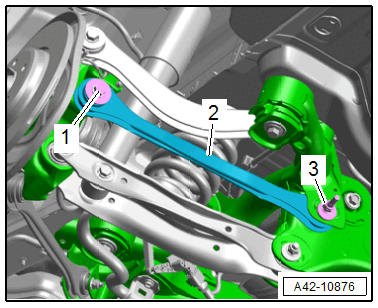

-- Remove the bolt -1- and disconnect the threaded connection -3- and remove the tie rod -2-.
