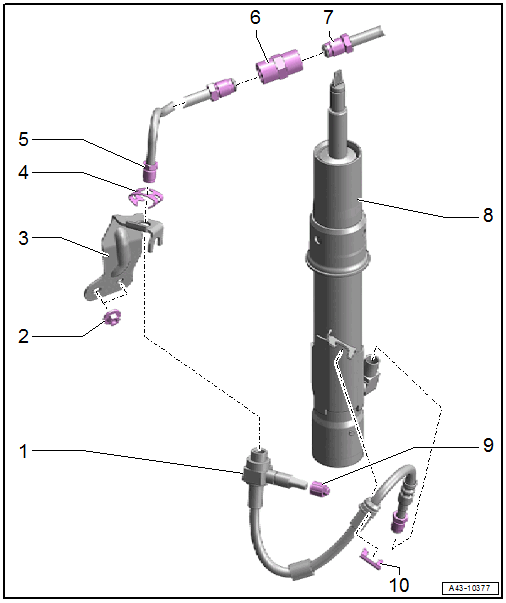

Overview - Front Suspension Strut
WARNING: This page is about a different variant/trim than selected.
- Hose/Line Assembly
- Union bolt, 14 Nm
- With extract/fill valve
- Nut
- 9 Nm
- Bracket
- Spring
- Replace if damaged
- Hydraulic Line
- Union bolt, 14 Nm
- Connecting Piece
- Hydraulic Line
- Union bolt, 14 Nm
- DRC Shock Absorber
- Removing and Installing. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
- Protective Dust Cap
- 1.5 Nm
- Spring
- Replace if damaged
