Rear Noise Insulation

WARNING: This page is about a different variant/trim than selected.

Removal Procedure:

-- Detach the expanding clips -arrows-.

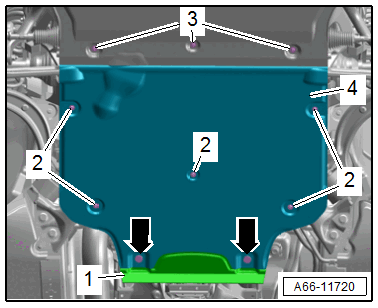

Fig 1: Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Detach the quick-release fasteners -2- and -3-.

-- Remove the noise insulation -4- toward the rear.

Installation Procedure:

Installation procedures occur in reverse order.

NOTE:

When installing, the quick-release fasteners must noticeably engage!
