Glove Compartment, Interior Lamps And Reading Lamps, Checking Function

Procedure:

-- Open the glove compartment and check the function of the glove compartment lamp.

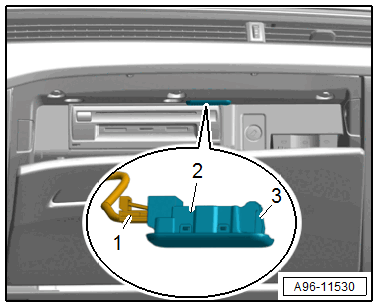

Fig 1: Locating Glove Compartment Lamp -W6-

Courtesy of AUDI OF AMERICA, LLC

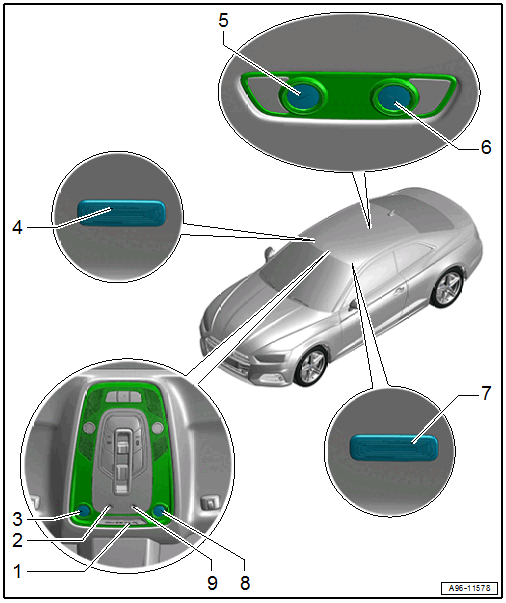

-- Activate the following vehicle interior lighting elements using the appropriate buttons and check the function of the lamps:

Courtesy of AUDI OF AMERICA, LLC

• Front interior lighting in headliner
• Rear interior lighting in headliner
