Cam Adjustment Actuator, Removing And Installing: Notes

WARNING: This page is about a different variant/trim than selected.

Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

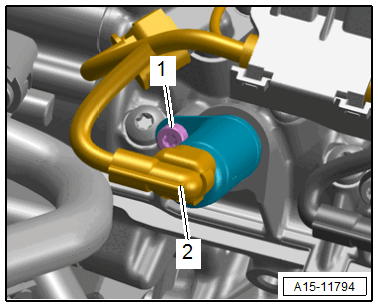

-- Cam Adjustment Actuator 1 -F366- : free up the wires and slightly push to the side.

-- Disconnect the connector -2-.

GWWA15-11794Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the cam adjustment actuator.
