Bearing Bracket, Removing And Installing: Removing

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

TIP:

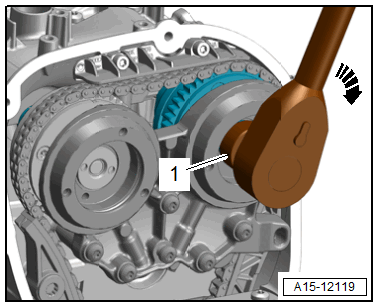

Fig 1: Removing Control Valve

Courtesy of AUDI OF AMERICA, LLC

The control valves have left-hand threads.

-- Remove the left and right control valve using the :T10352/2  -1- clockwise -arrow-.

-- Vibration damper, version 1. Refer to Figure: to do so, use the :T40263  , :T40314  and 24mm socket to counterhold the vibration damper.

Courtesy of AUDI OF AMERICA, LLC

-- Vibration damper, version 2. Refer to Figure: counterhold the crankshaft at the vibration damper using a offset open-end wrench 24 mm.

-- Remove the bolts -1 through 6-.

Fig 2: Bearing Bracket Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

• Carefully remove the bearing mount, without tilting.

-- Remove the bearing mount.
