Balance Shaft Drive Chain, Removing And Installing: Removing

-- Remove the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

Requirements:

Courtesy of AUDI OF AMERICA, LLC

• The crankshaft is at "TDC" ; the v-shaped cut-out on the three-layer chain sprocket points in an imaginary vertical line -arrows- centered between the camshaft chain sprockets.
• Three-layer chain sprocket locked with the :T10531/6  .

-- Remove the bolts -4- and the chain tensioner for the camshaft timing chain.

Courtesy of AUDI OF AMERICA, LLC

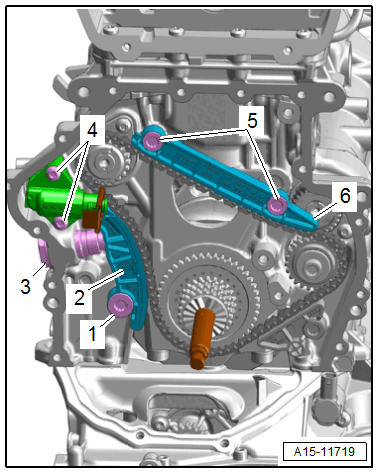

-- Remove the chain tensioner -3- for the drive chain balance shafts.

-- Remove the guide pins -1 and 5-, the tensioning rail -2- and the guide rail -6-.

-- Remove the balance shaft drive chain.
