Turbocharger Recirculating Valve -N249-, Removing And Installing: Removing

• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

Audi A4/A5:

-- Remove the bolts -arrows- and the air duct -2- from the lock carrier.

Courtesy of AUDI OF AMERICA, LLC

Audi A6/A7

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Audi Q5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

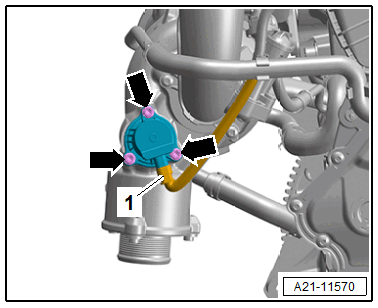

-- Disconnect the connector -1-.

-- Remove the bolts -arrows- and the Turbocharger Recirculation Valve -N249-.
