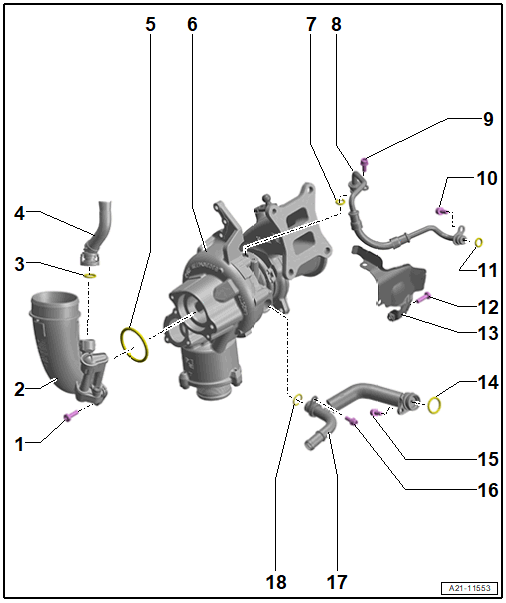

Overview - Turbocharger, Part 2
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 9 Nm
- Connection
- O-Ring
- Replace if damaged or leaking
- Coat with engine oil
- Hose
- For the crankcase ventilation
- O-Ring
- Replace after removing
- Turbocharger
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Coat with engine oil
- Oil Supply Line
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Coat with engine oil
- Bolt
- 9 Nm
- Heat Shield
- O-Ring
- Replace after removing
- Coat with coolant
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Coolant Supply Line
- O-Ring
- Replace after removing
- Coat with coolant
