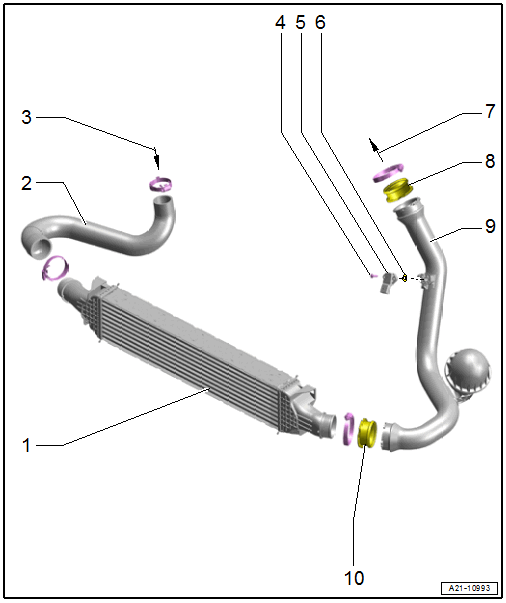

Overview - Charge Air System
WARNING: This page is about a different variant/trim than selected.
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the fins. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- Air Duct Hose
- Must be free of oil and grease before installing
- From the Turbocharger
- Bolt
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- 7 Nm
- Thread cutting
- Charge Air Pressure Sensor -G31-
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- O-Ring
- Not available separately; replace if leaking -item 5- or damaged
- to Intake Manifold
- Seal
- Replace if damaged
- Air Duct Pipe
- There are different versions. Refer to the Parts Information for the allocation.
- Must be free of oil and grease before installing
- Seal
- Replace if damaged
