Charge Air Pressure Sensor -G31-, Removing And Installing, Bolted Versions: Removing
WARNING: This page is about a different variant/trim than selected.
-- Loosen the screw-type clamp -2-, remove the air duct pipe from the Throttle Valve Control Module -GX3- and slightly push it to the left side.
-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the :VAS6122 .

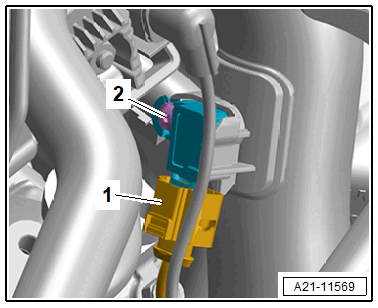

-- Disconnect the connector -1-.
-- Remove the bolt -2- and remove the Charge Air Pressure Sensor -G31- from the air duct pipe.
