Ribbed Belt TENSIONER, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the ribbed belt from the tensioner. Refer to RIBBED BELT, REMOVING AND INSTALLING .

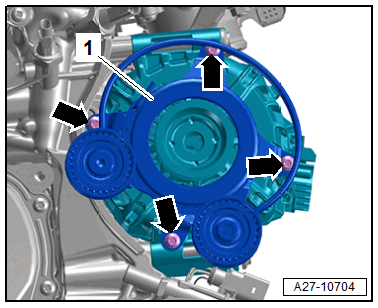

-- Remove the bolts -arrows-.
-- Remove the tensioner -1-.
