Overview - Windshield, A4, A5 Coupe And A5 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

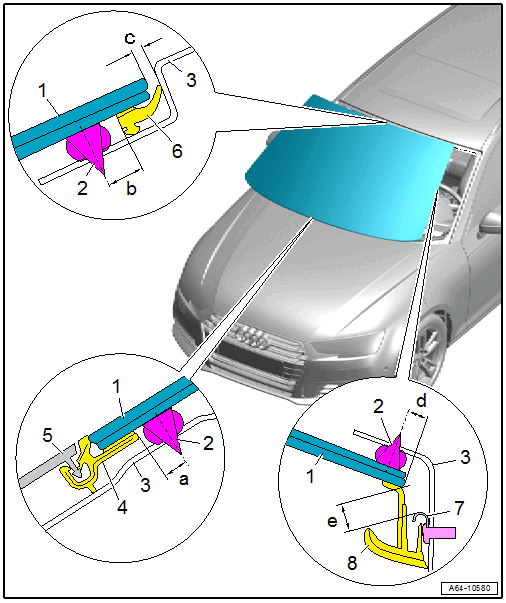

Fig 1: Windshield, A4, A5 Coupe And A5 Sportback Overview

Courtesy of AUDI OF AMERICA, LLC

Windshield
- Equipment versions with windshield defogger: Windshield Defogger Relay -J47-. Refer to the appropriate Wiring Diagram.
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- Distance to roof: dimension -c- = 2.5 mm
- Distance to A-pillars: dimension -e- = greater than 3 mm; center if necessary
Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
  A4:
  - Dimension -a- = 7 mm
  - Dimension -b- = 7.5 mm
  - Dimension -d- = 9 mm
  A5:
  - Dimension -a- = 7.6 mm
  - Dimension -b- = 7.2 mm
  - Dimension -d- = 11.3 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
Windshield Frame
Plenum Chamber Cover Frame
- Windshield component
- With a new windshield, remove the protective molding before installing the cowl panel trim. Refer to Fig 2.
Plenum Chamber Cover
- Insert in the frame -item 4-.
- Only press on until it stops after the minimum curing time for the adhesive.
Cover Profile
- Replace if reusing an undamaged windshield
- Cover Profile, Mounting on Undamaged Windshield. Refer to Cover Profile, Mounting on Undamaged Windshield: .
Clamping Strip
- For the drip rail
Drip Rail
- Removing and Installing. Refer to DRIP RAIL, REMOVING AND INSTALLING .

Protective Molding, Removing

Fig 2: Windshield, Protective Molding And Frame

Courtesy of AUDI OF AMERICA, LLC

-- For a new windshield -3-, the protective molding -1- must first be removed from the frame -2- before assembling the plenum chamber cover.
