Side Window Seal, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

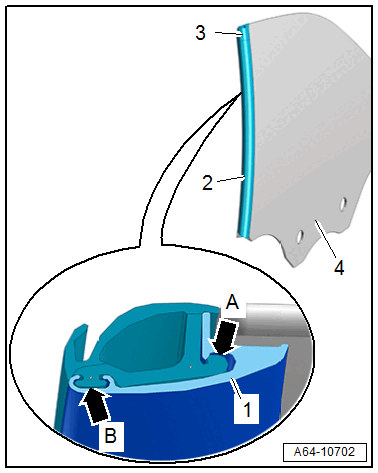

-- Place the end piece -3- of the upper window seal flush on the side window -4-.
- The end piece may not have any gap or projecting end to the mount.
-- Insert the window seal -2- on the rear -arrow A- in the mount -1- and engage on the front side -arrow B-.
-- Press on the entire length of the window seal.
