Overview - Rear Side Window, A5 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

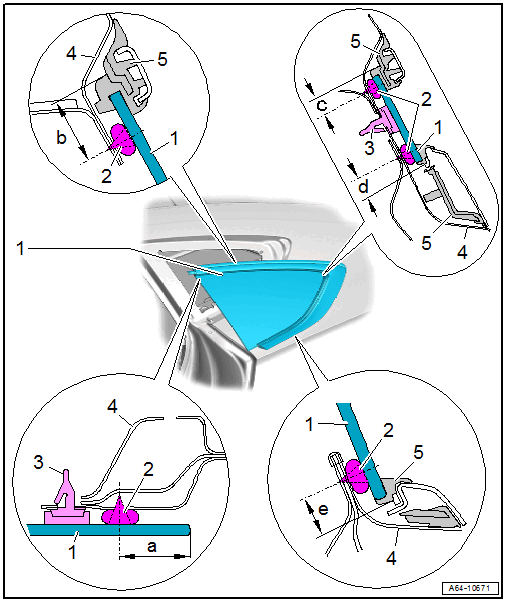

Fig 1: Rear Side Window, A5 Sportback Overview

Courtesy of AUDI OF AMERICA, LLC

Rear Side Window
- Removing and Installing. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A5 SPORTBACK .
- After installing, push in using the locating pin -item 3-
Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
  - Dimension -a- = 24.4 mm
  - Dimension -b- = 18.4 mm
  - Dimension -c- = 9.0 mm
  - Dimension -d- = 7.8 mm
  - Dimension -e- = 14.0 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
Locating Pin
- Is cut through when removing the window
Body
Molding
- On the side window
- Must not be damaged in the visible area
