Overview - Rear Side Window, A5 Coupe
WARNING: This page is about a different variant/trim than selected.
The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

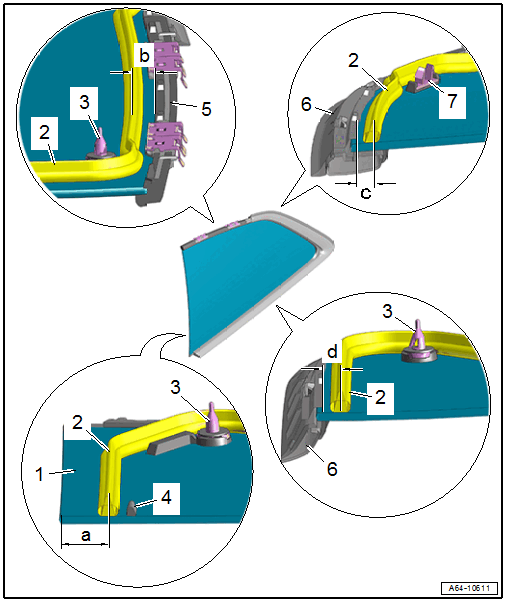

- Rear Side Window
- Removing and Installing. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A5 COUPE .
- After installing, push in using the locating pins -item 3-
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
- Dimension -a- = 40.3 mm
- Dimension -b- = 7.6 mm
- Dimension -c- = 7.5 mm
- Dimension -d- = 7.6 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Locating Pin
- Is cut through when removing the window
- Spacer
- Upper Molding
- On the side window frame
- Lower and Side Molding
- On the side window frame
- Catch
