Overview - Rear Window, A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.

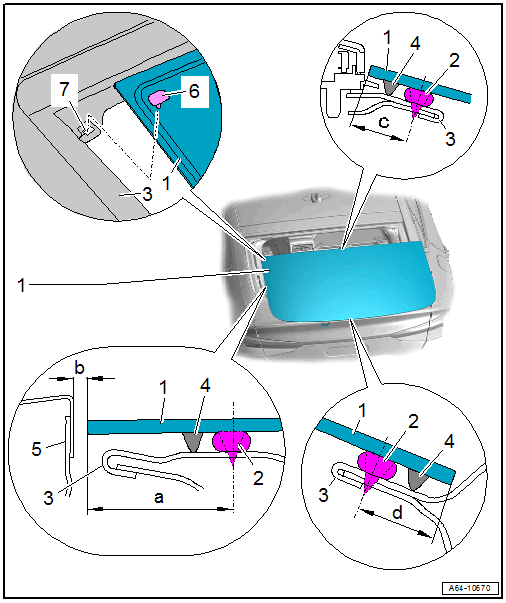

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Window
- Removing and Installing. Refer to UNDAMAGED REAR WINDOW, REMOVING, A5 SPORTBACK .
- Center at the sides
- Pay attention to the distance to the side panel
- Dimension -b- = 3.0 mm.
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 35.3 mm
- Dimension -c- = 16.2 mm
- Dimension -d- = 18.1 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Rear Window Frame
- In the rear lid
- Spacer
- Place on the markings made on the ceramic coating
- Quantity: 8
- Side Panel
- Locating Pins
- Quantity: 2
- Securing Hole
