Overview - Rear Window, A4 Sedan And A5 Coupe
WARNING: This page is about a different variant/trim than selected.

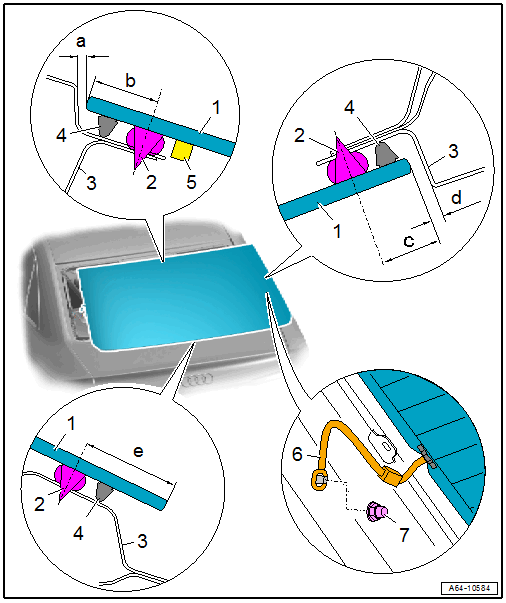

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Window
- Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- Distance to roof: dimension -a- = 2 mm
- Distance to D-pillars: dimension -d- = 3 mm; center if necessary
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
A4:
- Dimension -b- = 15.5 mm
- Dimension -c- = 14.5 mm
- Dimension -e- = 27.5 mm
A5:
- Dimension -b- = 17.7 mm
- Dimension -c- = 8.1 mm
- Dimension -e- = 29.7 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Rear Window Frame
- Spacer
- Place on the markings made on the ceramic coating
- Quantity: 8
- Foam Profile
- Ground Wire
- Nut
- 9 Nm
