Overview - Rear Window, A4 AVANT

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

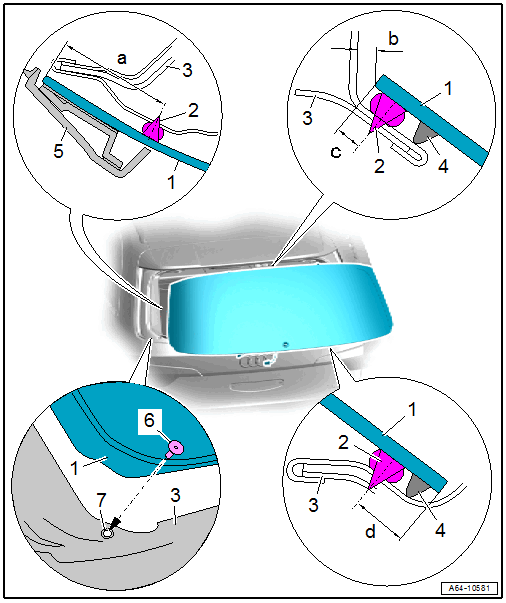

Fig 1: Rear Window, A4 Avant Overview

Courtesy of AUDI OF AMERICA, LLC

1. Rear Window
   • Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
   • Distance at top to rear lid: dimension -b- = 2 mm
   • Center at the sides
2. Adhesive Bead
   • Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Different distances to window edge:
     • Dimension -a- = 48.5 mm
     • Dimension -c- = 2 mm
     • Dimension -d- = 7.5 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
3. Rear Window Frame
   • In the rear lid
4. Spacer
   • Place on the markings made on the ceramic coating
   • Quantity: 8
5. Side Spoiler
   • For the rear window
   • Removing and Installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
6. Centering Pin
   • Is cut through when removing the window
7. Securing Hole
