Side Window Mount, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- "Half open" the rear side window.

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING, A5 CABRIOLET .

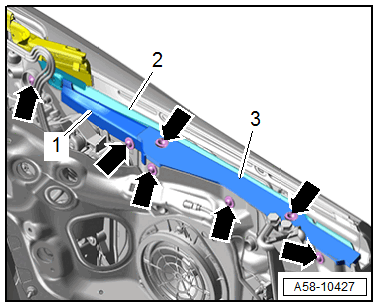

-- Remove the screws -arrows-.

GWWA58-10427Courtesy of AUDI OF AMERICA, LLC

-- Remove the side window mount -2- upward.
