Overview - Window Guides And Window Shaft Strips, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

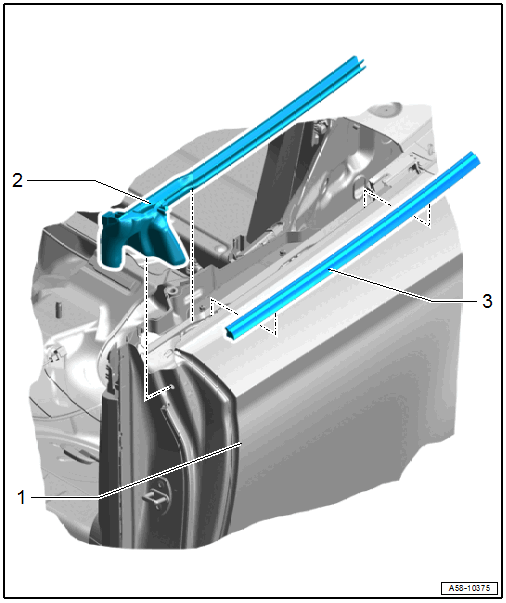

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

Side Panel
Inner Window Shaft Strip
- Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING, A5 CABRIOLET .
Outer Window Shaft Strip
- Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING, A5 CABRIOLET .
