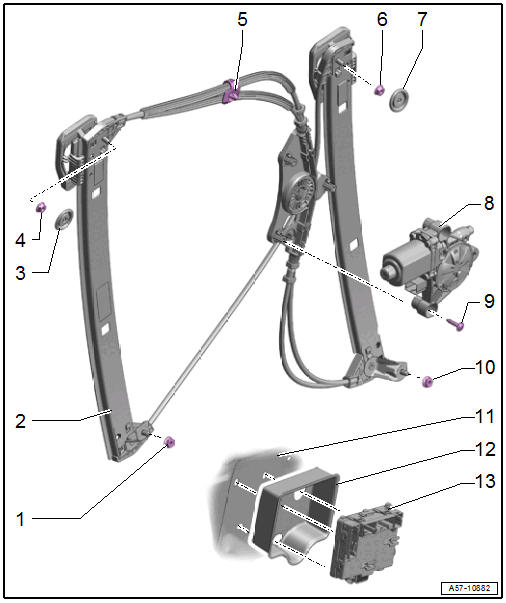

Overview - Window Regulator
WARNING: This page is about a different variant/trim than selected.
- Nut
- 7.5 Nm
- Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Cap
- Nut
- 7.5 Nm
- Clip
- For the window regulator cable
- Nut
- 7.5 Nm
- Cap
- Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Thread cutting
- Position and install by hand
- Quantity: 3
- Nut
- 7.5 Nm
- Door
- Rubber Grommet
- For the door control module
- Equipped on some models
- Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
