Overview - Window Guides And Window Shaft Strips, A5

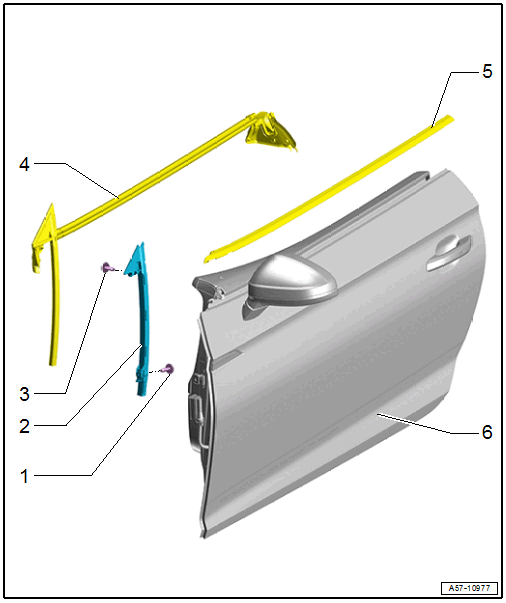

Fig 1: Exploded View Of Window Guides And Window Shaft Strips, A5

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Only A5 Coupe and A5 Cabriolet
   • Tightening specification Fig 2
2. Guide Rail
   • For the door window
   • Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
   • Only A5 Coupe and A5 Cabriolet
3. Bolt
   • Only A5 Coupe and A5 Cabriolet
   • Tightening specification Fig 2
   • Quantity: 2
4. Inner Window Shaft Strip
   • Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING, A5 .
5. Outer Window Shaft Strip
   • Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
6. Door

A5 Coupe and A5 Cabriolet Window Guide - Tightening Specification and Sequence

Fig 2: Guide Rail for the Door Window A5 Coupe, A5 Cabriolet - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 8 Nm in the sequence -1 to 3-.
