Outer Window Shaft Strip, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the door window into the "open" position.

-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

A4:

Courtesy of AUDI OF AMERICA, LLC

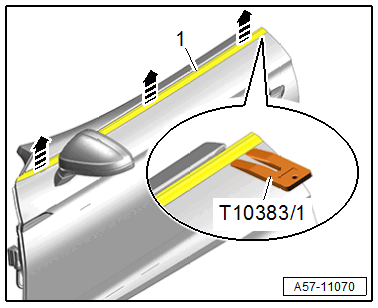

-- Using the Wedge Set : T10383/1 , carefully remove the window shaft strip -1- at the B-pillar trim -2- upward from the door flange -arrows-.

A5:

Courtesy of AUDI OF AMERICA, LLC

-- Using the Wedge Set : T10383/1 , carefully remove the window shaft strip -1- at the "B-pillar" upward from the door flange -arrows-.

Continuation:

-- Remove the window shaft strip.
