Outer Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
TIP:
The lower edge of the window shaft strip can be coated with tire mounting paste for installation.
A4:

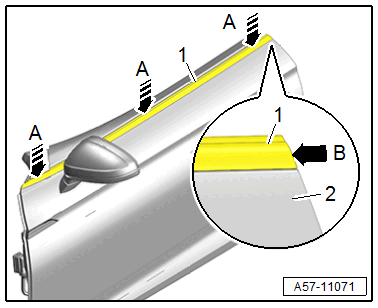

-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar in direction of -A arrows-.
A5:
-- Align the window shaft strip -1- flush to the door body -2- -arrow B- and attach it on the door flange all the way to the A-pillar in direction of -A arrows-.
Continuation:
Further installation is the reverse order of removal.
