Rear Wheel Housing Liner, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
- Rear wheel removed. Refer to WHEELS AND TIRES .

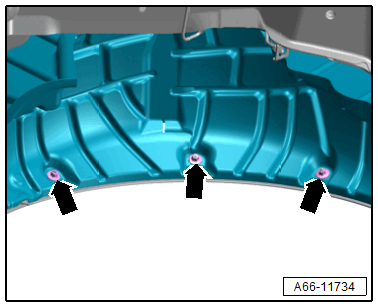

-- Remove the nuts -arrows-.

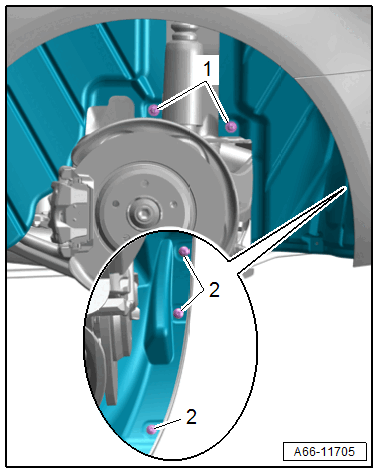

-- Remove the nuts -1- and bolts -2-.

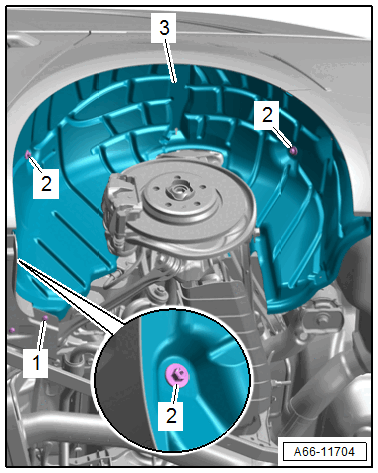

-- Remove the nuts -2- and the bolt -1-.
-- Remove the wheel housing liner -3-.
