Front Wheel Spoiler, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

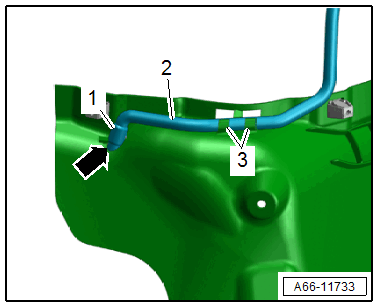

-- Insert the breather hose -2- into the hole -arrow- up to the bulge -1-.

GWWA66-11733Courtesy of AUDI OF AMERICA, LLC

-- Insert the breather hose in the mount -3- to secure it.
