Underbody Trim Panel Tunnel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

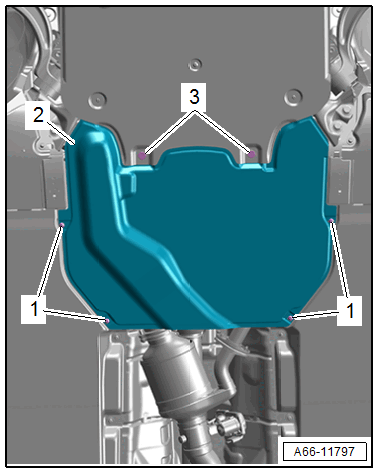

-- Remove the expanding rivet -3-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -1-.
-- Remove the tunnel underbody trim panel -2-.
