Rear Diagonal Braces, Removing And Installing, A4 And A5: Removing
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Risk of damaging the thread by using an impact wrench.
- When installing, position the bolts by hand and screw in the first threads.
- Do not loosen or tighten the bolts with an impact wrench.
-- A5 Cabriolet and A4 allroad from product improvement: remove the rear electric vehicle battery module. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

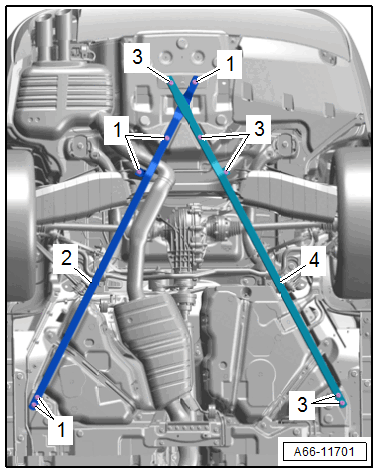

-- Remove the bolts -1 and 3- and remove the diagonal braces -2 and 4-.
