Overview - Spoiler, A4 Sedan And A5 Coupe

WARNING: This page is about a different variant/trim than selected.

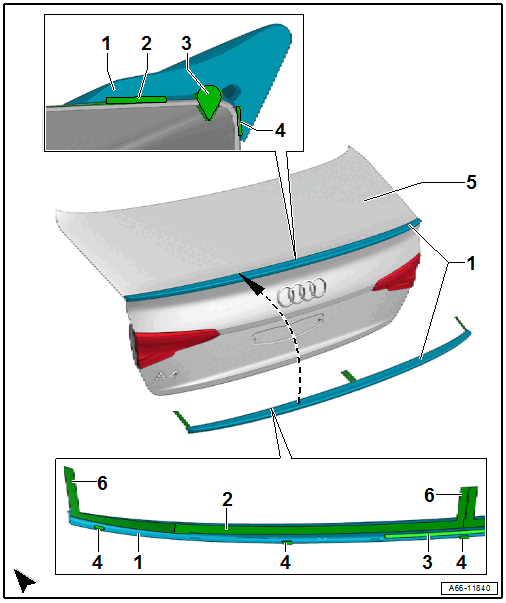

Fig 1: Exploded View Of Spoiler, A4 Sedan, A5 Coupe
GWWA66-11840Courtesy of AUDI OF AMERICA, LLC
  1. Spoiler
  2. Adhesive Tape
  3. Adhesive Bead
  4. Anti-Friction Film
  5. Rear Lid
  6. Removal Aid
