Roof Railing, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.
-- Remove the head curtain airbag igniter from the body. The head curtain airbag remains installed. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

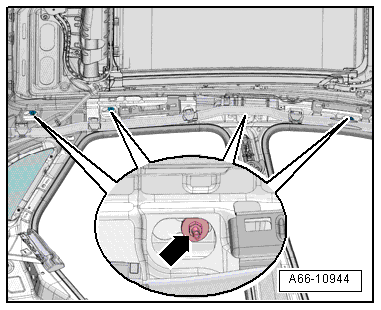

-- Remove the nuts -arrow- using the : T40078 .
-- Remove the roof railing upward.
