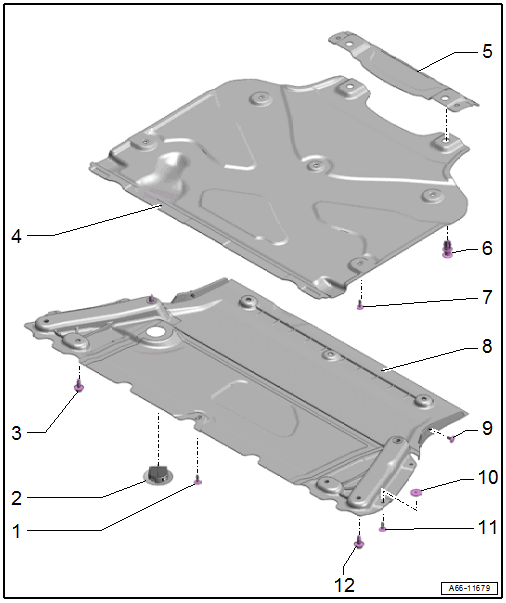

Overview - Noise Insulation, A4, A5 Coupe And A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Quick Release/Bolt
- Screw tightening specification: 2 Nm
- Without fastener
- Plug/Rubber Grommet
- Plug for vehicles without parking heater
- Rubber grommet for parking heater exhaust pipe
- Bolt
- 12 Nm
- Quantity: 2
- Noise Insulation
- Rear
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, REAR .
- Air Duct
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, REAR .
- Expanding Rivet
- Quantity: 2
- Quick Release/Bolt
- Screw tightening specification: 2 Nm
- Without fastener
- Quantity: 5
- Noise Insulation
- Front
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, FRONT .
- Expanding Rivet
- Fastener
- Quantity: 7
- Quick Release
- Quantity: 7
- Bolt
- 20 Nm
- Quantity: 4
