Dimensions - Side Name Badges And Emblems, A4
WARNING: This page is about a different variant/trim than selected.
- General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .

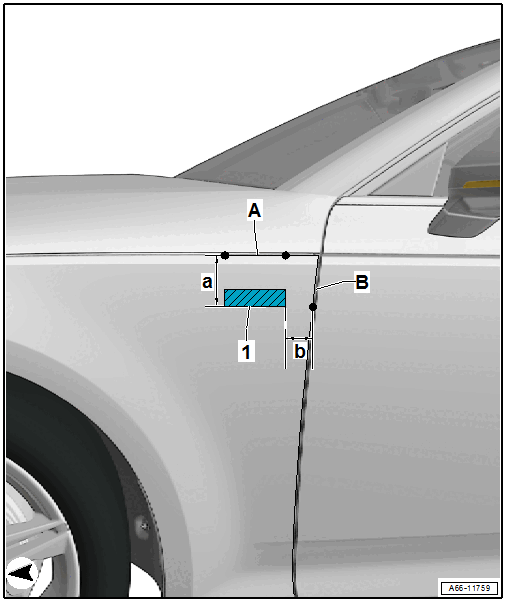

- 1 -
Type/Emblem
- S-line
Dimension -a- = 65 mm
Dimension -b- = 40 mm
- V6T
Dimension -a- = 65 mm
Dimension -b- = 40 mm
- S-line
- A - Cover Edge on Fender
- B - Fender Rear Edge
