Windshield Frame Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the left and right side windshield frame trim. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .

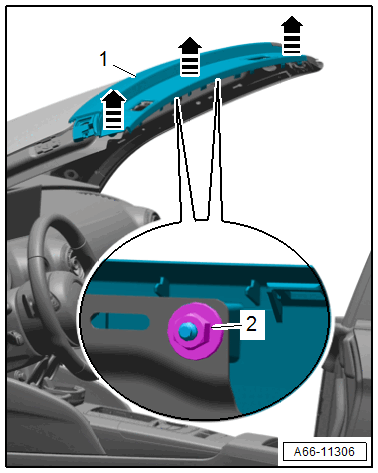

-- Remove the nuts -2-.

GWWA66-11306Courtesy of AUDI OF AMERICA, LLC

-- Pry off the windshield frame trim -1- -arrows-. At the same time, the retainers are loosened.
