Sill Panel Trim, Removing And Installing: Installing

Install in reverse order of removal and note the following:

• The vehicle and the trim must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04  and let dry.

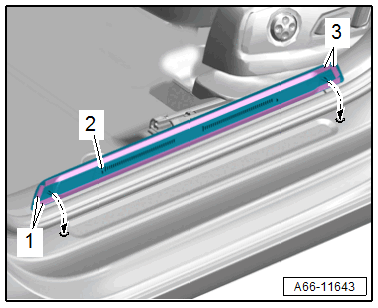

-- Remove the protective film from the adhesive tape -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the sill panel trim -2- over the pins on the side sill -arrows-.

-- Push the sill panel trim onto the side sill using the : 3356  .

• Resting time approximately 30 minutes at room temperature

Further installation is the reverse order of removal.
