Securing Strip For Side Sill Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the side sill trim panel. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, A4 ALLROAD  or SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, RS 4 .

-- Remove the nuts -2-.

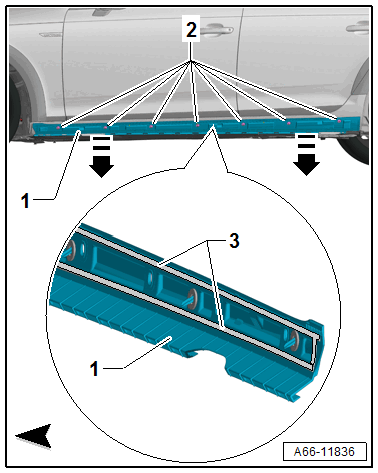

GWWA66-11836Courtesy of AUDI OF AMERICA, LLC

-- Use the : VAS1978/14A  to warm up the side sill trim panel securing strip -1- in the adhesion area -3- and remove it in stages -arrows-.
