Luggage Compartment Recess Heat Shield, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Vehicles with diagonal braces: remove the diagonal braces. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .

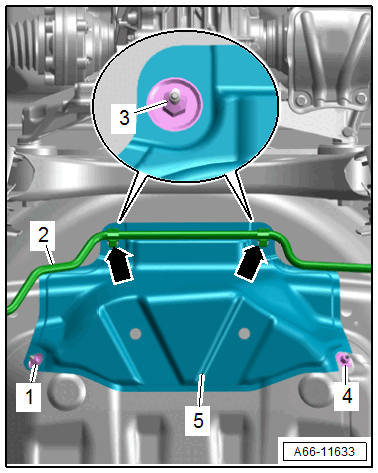

-- Remove the nuts -1 and 4-.
-- TDI vehicles: free up the wire -2- -arrows-.
-- TFSI vehicles: remove the nuts -3-.
-- Remove the heat shield -5-.
