Front Heat Shield For Longitudinal Member, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING, REAR .

Left:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

-- Remove the lock washer -3- and clips -1-.

-- Remove the heat shield -2-.

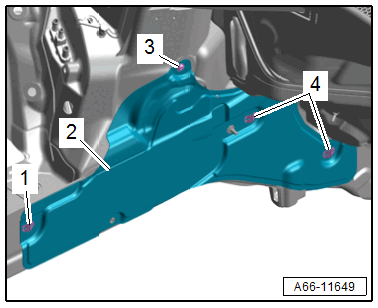

Right:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3-.

-- Remove the clips -1 and 4-.

-- Remove the heat shield -2-.
